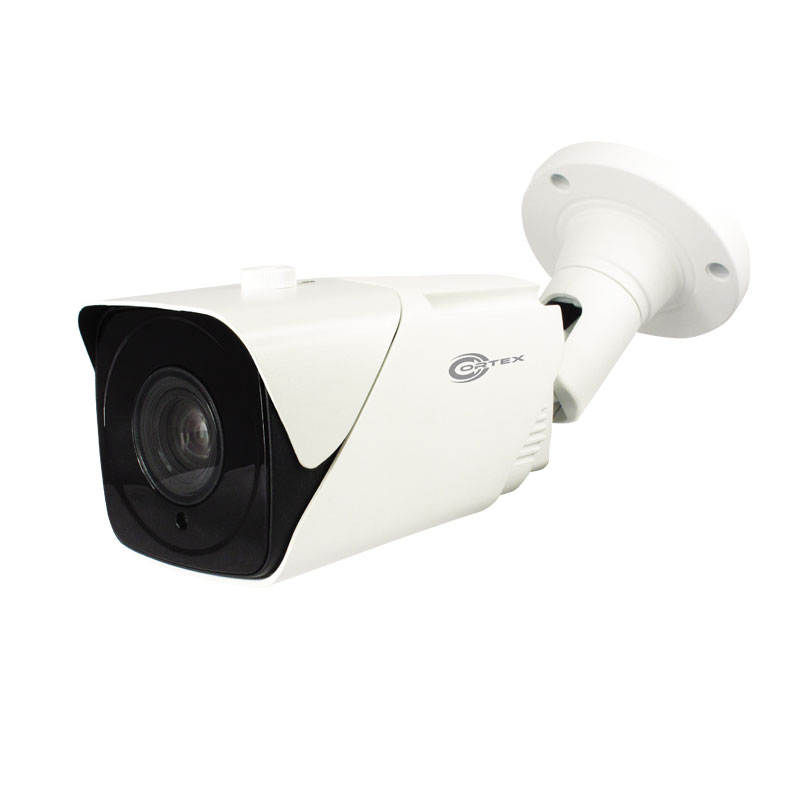

Long Range IP Camera

The main benefit of autofocus is the ease of use, but this is amplified by the dependable one-lock technology that takes advanced measures to prevent focus shift with corrected lenses and filters.

Main Features

• ANPR and LPR viewing and capture
• Dedicated (enhanced) license plate reading image settings
• 5MP 2592(H) × 1944(V) Resolution
• 1/2.7" Progressive CMOS 6.82M pixels
• 5 ~ 50mm (Motorized) Lens: H.FOV: 45 ~ 7°
• H.265 / H.264 Video Compression
• 8pcs (DragonFire® SMD) LEDs Stealth Infrared Cover
• Medallion and Open compatibility
• Auto-switching infrared-cut filter (OSD on/off)
• Multiple adjustable Video Streaming
• IP66 Waterproof Metal Housing Casing
• IR Range: Up to 262 feet (80m)
• Long Range IP Camera

Specifications

• Cortex LPR technology with shutter and gain balancing technology
• Resolution: 5MP 2592(H) × 1944(V) camera
• Image Sensor: 1/2.7" Progressive CMOS
• Vehicle plate reading and recording
• ANPR artificial intelligence (AI) for plate capture
• Min. Illumination: Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
• Shutter Time: Auto/Manual 1/5 ~ 1/20000s
• Slow shutter: Support
• Lens: 5 ~ 50mm (Motorized) H.FOV: 45.32-7°,33.48-5.2,57.94-9
• F-Stop: F 2.0 ±5%
• Day&Night:IR cut filter with auto switch(Day/Night/Auto/Schedule)
• WDR: 120 dB
• Video Compression: H.265 / H.264
• Video Bit Rate: 8Kbps ~ 8Mbps
• Triple Streaming: yes
• Frame Rate:
  • Mainstream（1~20fps default 20fps） 5MP (2592x1944),4MP(2592x1520),3MP(2304x1296)(2048x1535) 1080P(1920x1080), 720P(1280x720),
  • Substeam: 720P(1280x720),VGA(640x480),QVGA(320x240)
  • Mobilestream: VGA(640x480), QVGA（320x240）
• Image Settings: Flip,Rotation,Corridor mode, Saturation,Brightness, Contrast, Hue, Sharpness adjustable
• BLC: Support
• ROI: Support
• Privacy Mask: Support
• AI Analytics:
  • Perimeter Intrusion Detection, Line,Crossing Detection, Sationary Object Detection, Pedestrian Detection,Face, Detection,Cross Counting.
• Protocols:
  • TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
• Compatibility: Open compatibility
• Network Interface: RJ45 10M / 100M Ethernet interface x1
• LED: 8pcs (Array)
• IR Range: Up to 262 feet (80m)
• SD Card: Internal
• Alarm Trigger: 1 input / 1 output
• Audio: 1 input / 1 output (RCA)
• Video Output: NA
• Reset System: Hardware reset button and software
• PoE: Yes
• Casing: Metal housing IP66 Waterproof
• Power Supply: DC 12V / POE
• Consumption: ≤ 7.9w
• Storage Temperature: -30~+60°C (-22~+140°F)
• Operating Temperature: -30~+55°C (-22~+131°F)
• Dimension:310 x 89.5 x 96 mm (12.2 x 3.5 x 3.7 inches)
• Weight: Approximately 3.14 lbs (1427g)
