Junction Box for Small Bullet, Dome and Turret Security Cameras
$27.00
Junction Box for Small Bullet and Dome Medallion bullet, dome, and turret security cameras
Product Specifications
This junction box is engineered for professional cable management, allowing for a clean installation while protecting connections from weather and vandalism.
Key Features
-
Housing: High-quality aluminum with a baked-on white finish.
-
Waterproof Rating: IP66 (Dust tight and protected against heavy seas or powerful jets of water).
-

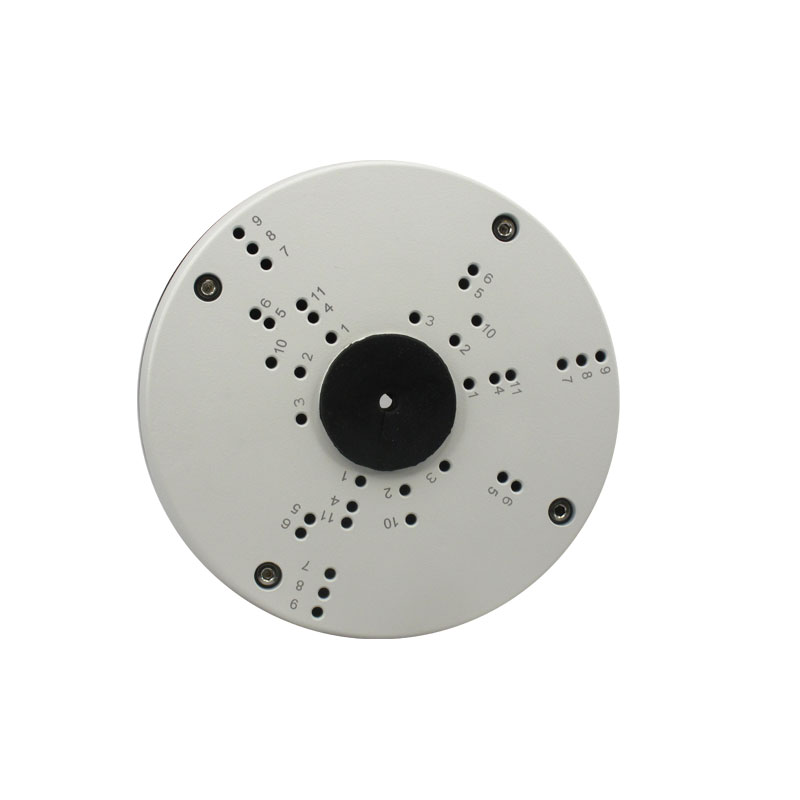

Universal Fit: Multi-screw hole pattern system adapts to many generic network or HD cameras, though optimized for Medallion.
-
Mounting: Versatile design allows for both Ceiling and Wall installation.
-
Cable Management: Features conduit holes on both the top and side (G1 - 1 inch fittings) with included plugs and rubber seals.
Technical Data
|
Specification |
Detail
|
|---|---|
|
Model Compatibility
|
Small Medallion IP Domes, Turrets, and Bullets
|
|
Dimensions
|
134mm Diameter x 59mm Depth (approx. 5.28" x 2.32")
|
|
Material
|
Corrosion-resistant Aluminum Alloy
|
|
Conduit
|
Standard 1-inch (G1) USA fittings
|
Installation & Compatibility
Designed for Medallion
While the multi-hole pattern allows for generic use, this junction box is specifically "keyed" for Cortex Medallion Series bullet, dome, and turret security cameras.
The product you described is the Cortex Quality a premium, corrosion-resistant, aluminum back-box designed for small cameras in the Cortex Medallion Series. It is an ideal solution for organizing and protecting camera cable connections from environmental factors.
Key Product Details
- Material: Constructed of high-quality, corrosion-resistant aluminum with a baked-on white finish.
- Compatibility: Specifically designed for small Cortex Medallion series bullet, dome, and turret cameras, with a multi-screw hole pattern for generic applications.
- Weatherproofing: Features IP66 waterproof housing, a rubber seal, and is designed to keep rain, dust, and dirt from cable connections.
- Installation: Suitable for both ceiling and wall mounting, it includes conduit holes on the top and side with plugs, and uses standard G1 - 1 inch conduit fittings for USA markets.
- Dimensions: The dimensions are listed as 3.32 X 134mm (2.32 X 5.28 inches).
Weatherproofing
The Distribution box includes a dedicated containment area for baluns and connectors, sealing them behind a rubber gasket. This prevents corrosion on gold connectors and water ingress, which are common causes of video loss in outdoor environments.
