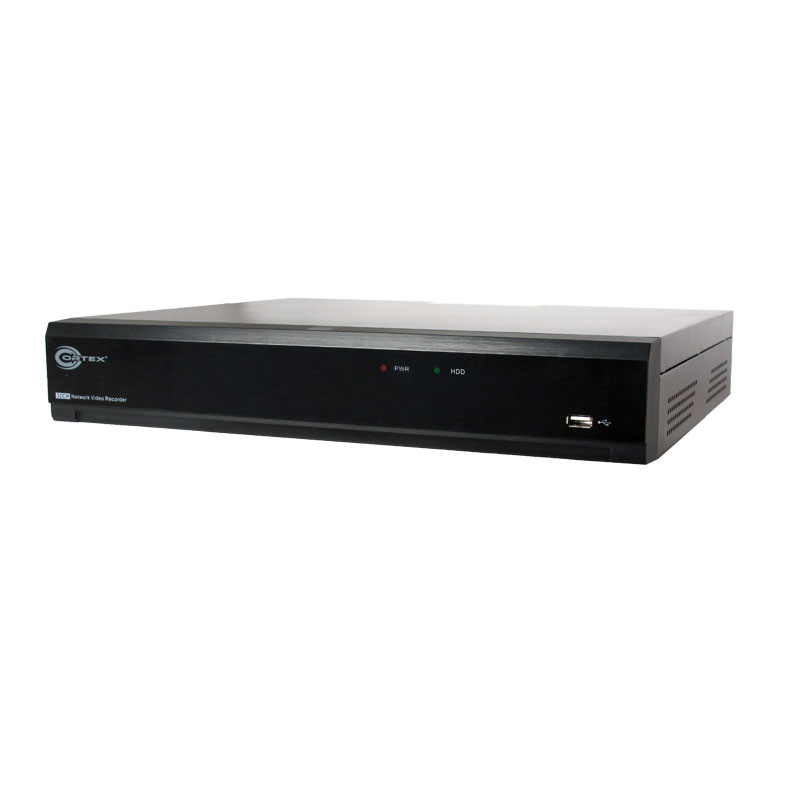

Medallion 32 Channel 4K NVR with H.265 and 16 PoE Ports

$1,300.00

  • 4K 32 Channel / 16 PoE NVR from Medallion Series
  • Live / Playback
  • Ethernet: RJ-45 port (100/1000M)
  • Simultaneous HDMI and VGA Output
  • Various recording resolutions: 720P, 1080P, 2K, 4K UHDH.265 High Efficiency Compression
  • Cortex panoramic immersive technology support for Medallion Fisheye models
  • Video Encoding
  • 16 Power over Ethernet (PoE) ports on-board
  • Modern Intuitive GUI
  • Simultaneous HDMI and VGA Output
  • Panoramic Dewarping Support
  • Intelligent Analytics Setup
  • 128 Channel CMS
  • Quick QR Code
  • Plug and Play
  • Multiplex Functionality
  • Cortex® 4K in and 4K out

Specifications

  • VIDEO *
    • Resolution: 12MP, 8MP ,5MP, 3MP , 2MP (1080P) ,1.3MP (960P), 1.0MP (720P)
  • RECORDING BANDWIDTH*
    • IP-Recording Bandwidth (Maximum input Bandwidth):256Mbps
    • IP-Recording Bandwidth (Maximum output Bandwidth):128Mbps
    • Video System: NTSC / PAL
    • Operation System: Linux (embedded)
    • IP Video Input: 16ch PoE
  • LIVE / PLAYBACK*
    • Compression: Audio: G.711A;G.711U / Video : H.264/H.264+/H.265/H.265+
    • Frame rate (speed):
    • 4K:60fps
    • 4MP:120fps
    • 2MP:240fps
    • Event: MD (Sensitivity Level 1~8) , Video loss , Beep, Email, Push notification to Mobile APP
    • Playback function: Fast forward / backward (2x, 4x, 8x,16x),Slow forward (1/2x, 1/4x, 1/8x,1/16x)
    • Multiplex Operation{} live display - record - playback - backup and network
    • Feature: 1 / 4 / 6 / 9 / 12 / 16 / 20 / 25 / 32 / S.E.Q
    • Fisheye: Use WEB, VMS, CORTEX iQ, local GUI
    • Playback Max 16CH playback
  • UI / MONITORING *
    • WEB: IE10/11,Safari V12.1 above ,Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
    • Push notification: Yes
    • Mobile viewer: CORTEX IQ
    • Ai Smart Features: Face Recognition (FR) Human&Vehicle Detection (PD&VD) Perimeter Intrusion Detection(PID) Line Crossing Detection(LCD) Cross Counting (CC)Stationary Object Detection (SOD) Heat Map(HM)Crowd Density Detection (CD) Queue Lenght Detection (QD) license Plate Detection (LPD) Rare Sound Detection (RSD)
  • INTEREFACE*
    • P/W Reset: Factory Reset : Press 10 seconds
  • *CONNECTIONS*
    • Ethernet: 1 RJ45 10/100/1000 Base-T
    • POE: 16 X RJ45, 802.3at/af / 48V PoE
    • USB:USB2.0 x 1 (front), USB3.0 x 1 (rear) USB2.0 x 1 (rear)
    • Audio output: 1CH out put (RCA)
    • E-sata: 1
    • HDD: 4 SATA HDD, up to 16TB each
    • Line in: N/A
    • Alarm input/output: 16 in / 1 out
  • MONITORS*
    • HDMI: 1(1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160/EDID)
    • VGA: 1(1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 )
  • *GENERAL*
    • OSD Language: English French Spanish Portugues German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish
  • *ELECTRICAL*
    • Input Voltage/Current: ATX280W / 48V PoE
    • Power consumption(excluding hard disk): 12W
  • ENVIRONMENTAL*
    • Working Temperature: -10°C~+50°C (14°F ~ 122°F)
    • Working Humidity Less than 90%RH
  • MECHANICAL DESIGN*
    • Dimension ( W x D x H ): 379 x 326 x 66mm (14.8 x 12.7 x 2.5 inches)

Additional information

Dimensions 12.7 × 14.8 × 2.5 in
